SINEWAVE INVERTER 1000VA (48V)
Spesifikasi
(Inverter dan Konverter)

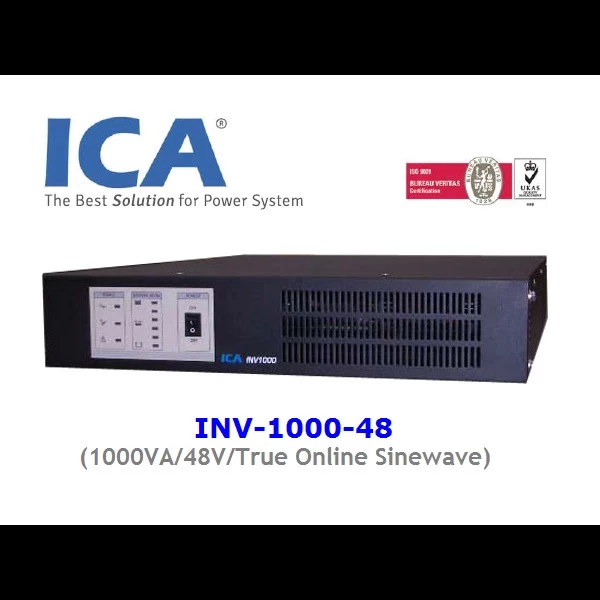

RACKMOUNT SINEWAVE INVERTER 1000VA/48V
(TRUE ONLINE SINEWAVE INVERTER)
TECHNICAL SPECIFICATION :
- Type/Model : INV1000
- Capacity : 1000VA / 800W
- DC Input Voltage : 44 - 58 VDC
- DC Input Max.Current : 23A
- DC Input Protection : FUSE
- INVERTER Output Wave Form : SINEWAVE
- INVERTER Output Distorsion : < 3% THD (Load 0-100%)
- INVERTER Output Topology : Pulse Width Modulation (PWM)
- INVERTER Output Voltage : 220V 2% (single-phase)
- INVERTER Output Frequency : 50Hz 1%
- INVERTER Output Efficiency : > 85% (At Full Load)
- BUZZER Battery Low / DC Input Low : Intermittent Sound with 1 Second Interval (Battery/DC Input <44V)
- Operation Temperature : 0 - 40C
- Dimension (D x W x H) : 430 x 435 x 87 mm
- Weight : 8.0 kg (netto) / 9 kg (gross)
