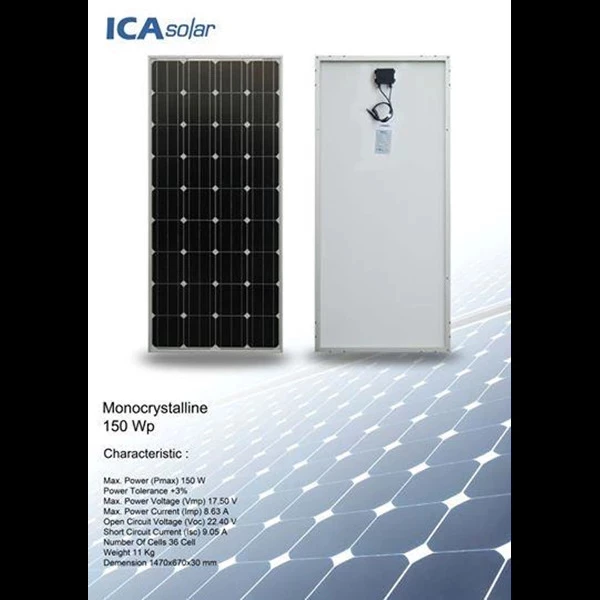

SOLAR PANEL 150Wp - Monocrystalline
Electrical Characteristics :
- Maximum Power (Pmax): 150Wp
- Power Tolerance: + 3%
- Maximum Power Voltage at Pmax (Vmp) : 17.50V
- Maximum Power Current at Pmax (Imp) : 8.63A
- Open-Circuit Voltage (Voc): 22.40V
- Short-Circuit Current (Isc): 9.05A
- Weight (kg): 11kg
- Dimension of Module (mm): 1470 x 670 x 30 mm
- Pmax Temperature Coefficient (%/℃) : -0.44
- Voc Temperature Coefficient (%/℃): -0.30
- Isc Temperature Coefficient (%/℃): +0.05
- Maximum System Voltage (VDC): 1000V (TUV); 600V (UL)
- Maximum Series Fuse Rating (A): 15A
- Operating Temperature (℃): -40℃ to +85℃
- Normal Operating Cell Temp (NOCT) : 45℃ ± 2℃
- Application Class: Grade-A
- Cell Technology: Mono-Si
- Certification: ISO9001/ISO14001/OHSAS18000Solar Panel / Solar Cell
