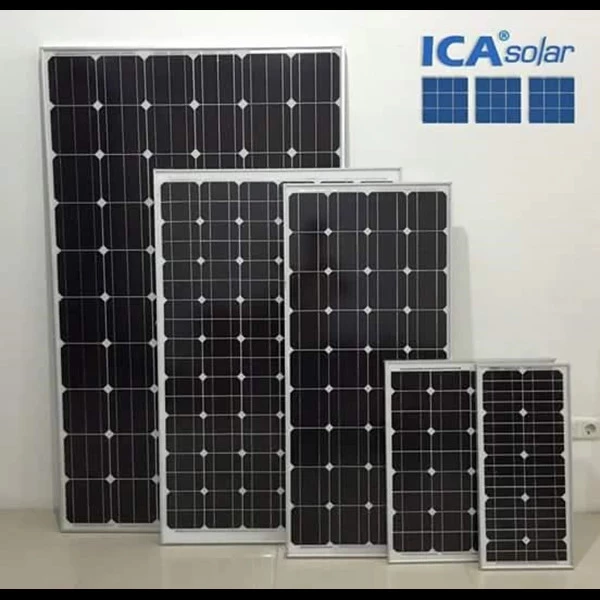

Solar Panel / Solar Cell 200Wp - Monocrystalline
Electrical Characteristics :
- Maximum Power (Pmax) : 200Wp
- Power Tolerance : + 3%
- Maximum Power Voltage at Pmax (Vmp) : 35.40V
- Maximum Power Current at Pmax (Imp) : 5.65A
- Open-Circuit Voltage (Voc) : 44.60V
- Short-Circuit Current (Isc) : 5.98A
- Weight (kg) : 15.3kg
- Dimension of Module (mm) : 1320 x 992 x 40 mm
- Pmax Temperature Coefficient (%/℃) : -0.44
- Voc Temperature Coefficient (%/℃) : -0.30
- Isc Temperature Coefficient (%/℃) : +0.05
- Maximum System Voltage (VDC) : 1000V (TUV); 600V (UL)
- Maximum Series Fuse Rating (A) : 15A
- Operating Temperature (℃) : -40℃ to +85℃
- Normal Operating Cell Temp (NOCT) : 45℃ ± 2℃
- Application Class : Grade-A
- Cell Technology : Mono-Si
- Certification : ISO9001/ISO14001/OHSAS18000 Solar Panel / Solar Cell
