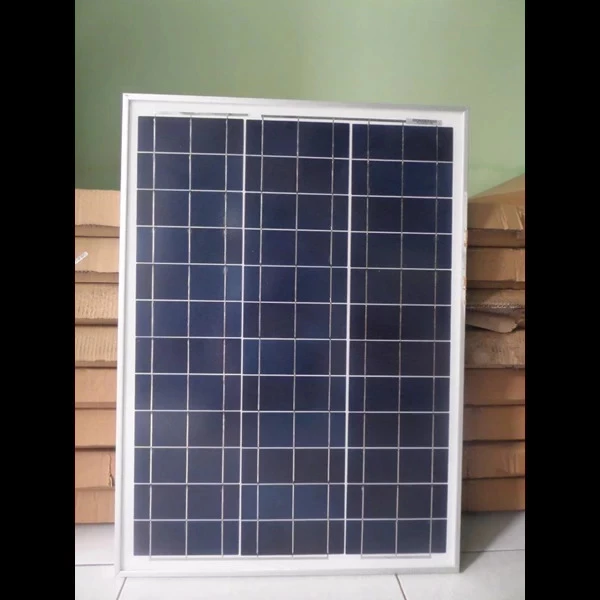

SOLAR PANEL 50W - Polycrystalline
Spesifikasi
PANEL TENAGA SURYA / SOLAR PANEL / SOLAR CELL / SOLAR PV MODULE
ICA SOLAR IPV-50P
(50Wp Polycrystalline)
Electrical Characteristics :
- Maximum Power (Pmax) : 50Wp
- Power Tolerance : + 3%
- Maximum Power Voltage at Pmax (Vmp) : 17.60V
- Maximum Power Current at Pmax (Imp) : 2.85A
- Open-Circuit Voltage (Voc) : 22.50V
- Short-Circuit Current (Isc) : 3.04A
- Weight (kg) : 4.5kg
- Dimension of Module (mm) : 700 x 510 x 30 mm
- Pmax Temperature Coefficient (%/℃) : -0.44
- Voc Temperature Coefficient (%/℃) : -0.30
- Isc Temperature Coefficient (%/℃) : +0.05
- Maximum System Voltage (VDC) : 1000V (TUV); 600V (UL)
- Maximum Series Fuse Rating (A) : 15A
- Operating Temperature (℃) : -40℃ to +85℃
- Normal Operating Cell Temp (NOCT) : 45℃ ± 2℃
- Application Class : Grade-A
- Cell Technology : Poly-Si
- Certification : ISO9001/ISO14001/OHSAS18000
