TECHNICAL SPECIFICATION :

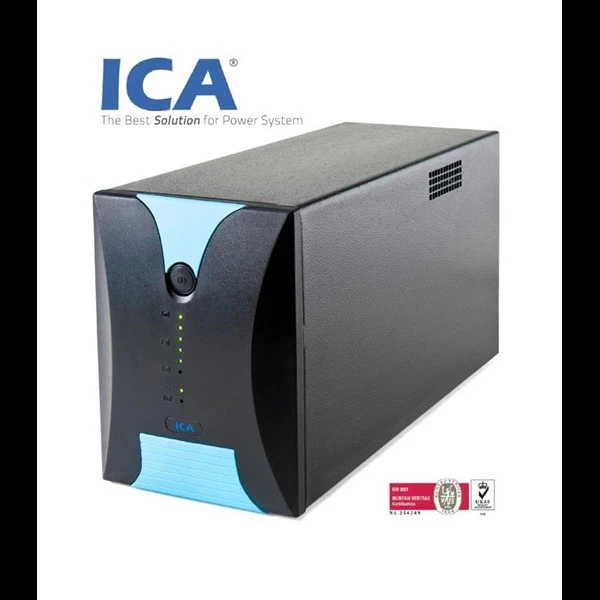

- Model & Type : CT-628B / LINE INTERACTIVE UPS
- Capacity : 1200VA / 600W
- AC Input Voltage : 160V ~ 250V
- AC Input Current : 2.9A (Max.Load & Charger)
- AC Input Frequency : 50Hz ± 3%
- AC Input Protection : 6.3A (Fuse)
- DC Input Voltage : 24V
- DC Input Internal Battery : 2 x 12V/7Ah (SLA Battery)
- DC Input Protection : 50A
- INVERTER Output Waveform : SYNTHESIZED SINEWAVE/STEP WAVE (PWM)
- INVERTER Output Voltage : 220V ± 5%
- INVERTER Output Frequency : 50Hz ± 1%
- INVERTER Output Efficiency : > 80%
- CHARGING Type : CONSTANT VOLTAGE
- CHARGING Voltage : 27.0V
- CHARGING Current : 1.5A (Maximum)
- Transfer Time When AC Input Fail : ≤ 4ms
- Back Up Time : 10 min (Nominal Load)
- Indicator : LED & BUZZER (refer to condition table)
- Operation Temperature : 0 - 40°C
- Dimension (D x W x H) : 390 x 145 x 195 mm
- Weight : 14kg (netto) / 15kg (gross)
